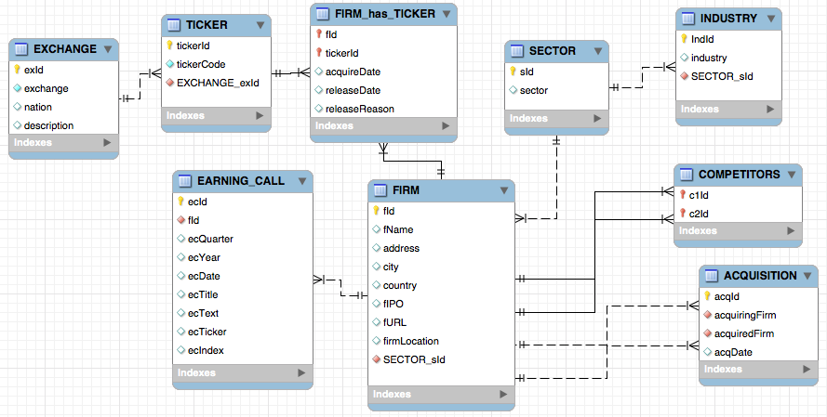

Database Model is the logical representation of the structure of the data.
In general, there are two types of database models:
Modelling is Designing
A database must model the real world
Objective: Storing and retrieving data about the real world

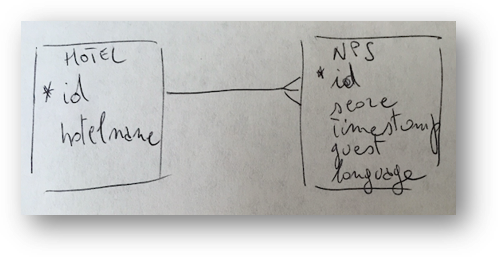

Data modelling is a design technique for capturing data reality

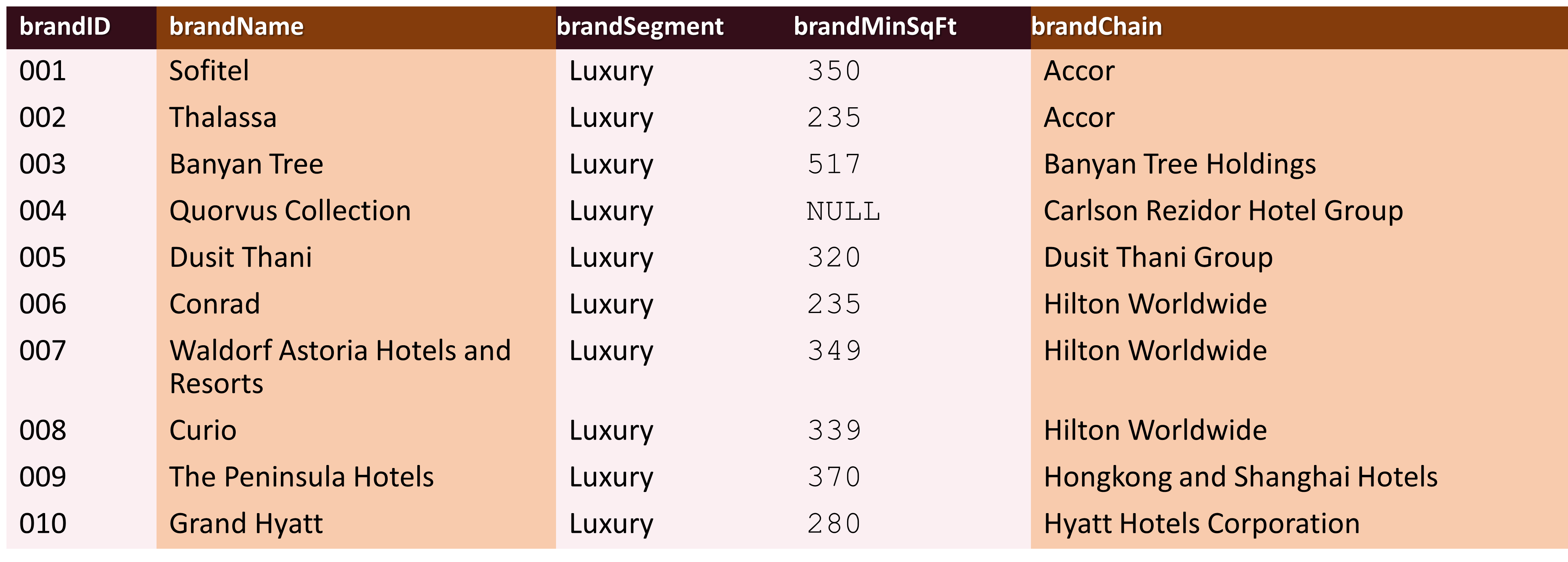

The relational model is a way of organizing data into tables (called relations).
The Relational Model represents data and their relationships through a collection of tables. Each table also known as a relation consists of rows and columns. Every column has a unique name and corresponds to a specific attribute, while each row contains a set of related data values representing a real-world entity or relationship.
The relational model represents how data is stored in Relational Databases. A relational database consists of a collection of tables each of which is assigned a unique name.

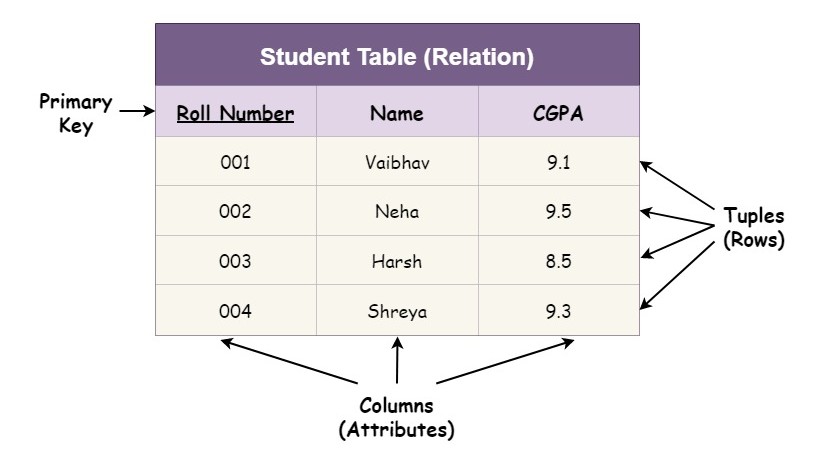

Relation or table: * Matrix of intersecting tuples and attributes + Tuples: Rows + Attributes: Columns

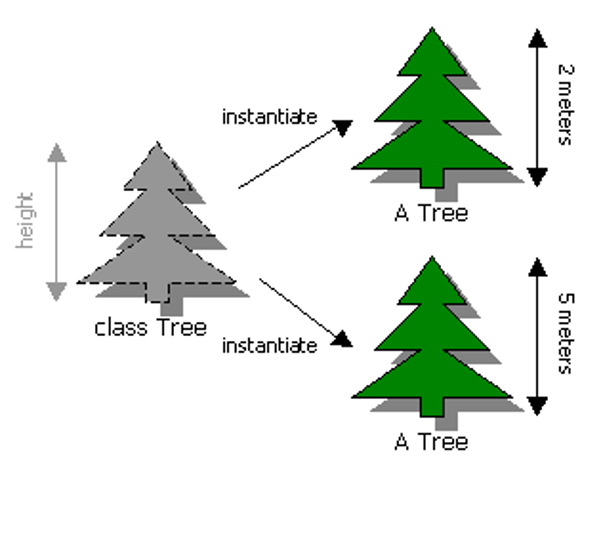

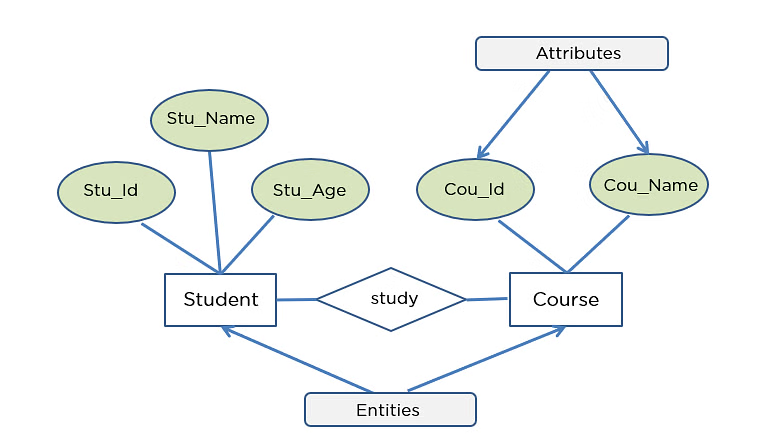

An entity is some thing in the environment. It can be a physical entity (e.g., student) or an abstraction (e.g., marriage). You can think of an entity as a class of objects (or phenomena). An instance is a particular occurrence of an entity.
No worries! It will get easier with the examples below 😅
First, we need to draw an entity.
Remember, an entity is:

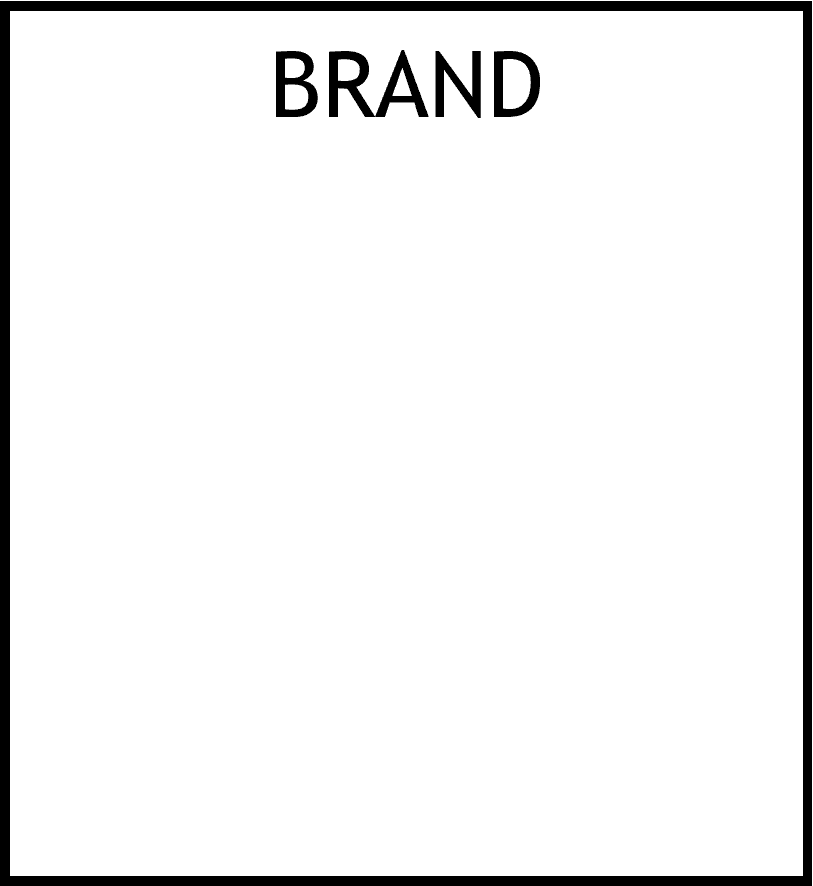

An entity is represented by a rectangle in modelling notation

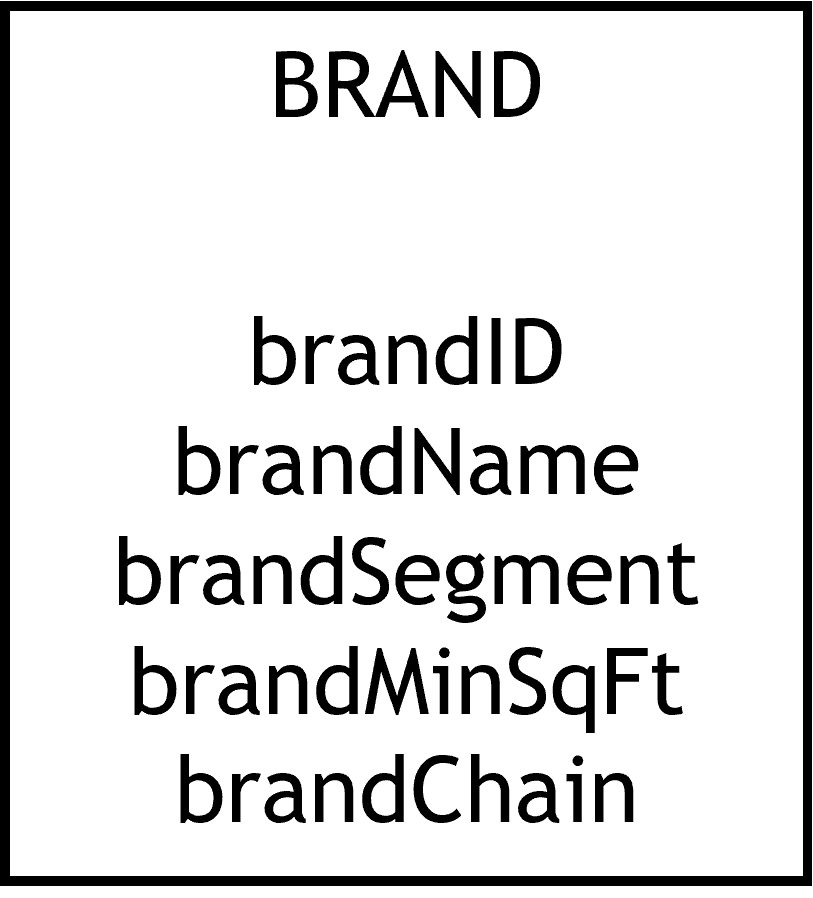

Second, let’s think about attributes.
An attribute is a discrete data element that describes an entity.
Attribute names must be unique within a data model
Attribute names should be meaningful
There is one more step before we have our model ready. We need to add identifiers.
Every instance of an entity must be uniquely identified.
An identifier can be an attribute or collection of attributes.
An identifier can be created if there is no obvious attribute (surrogate).

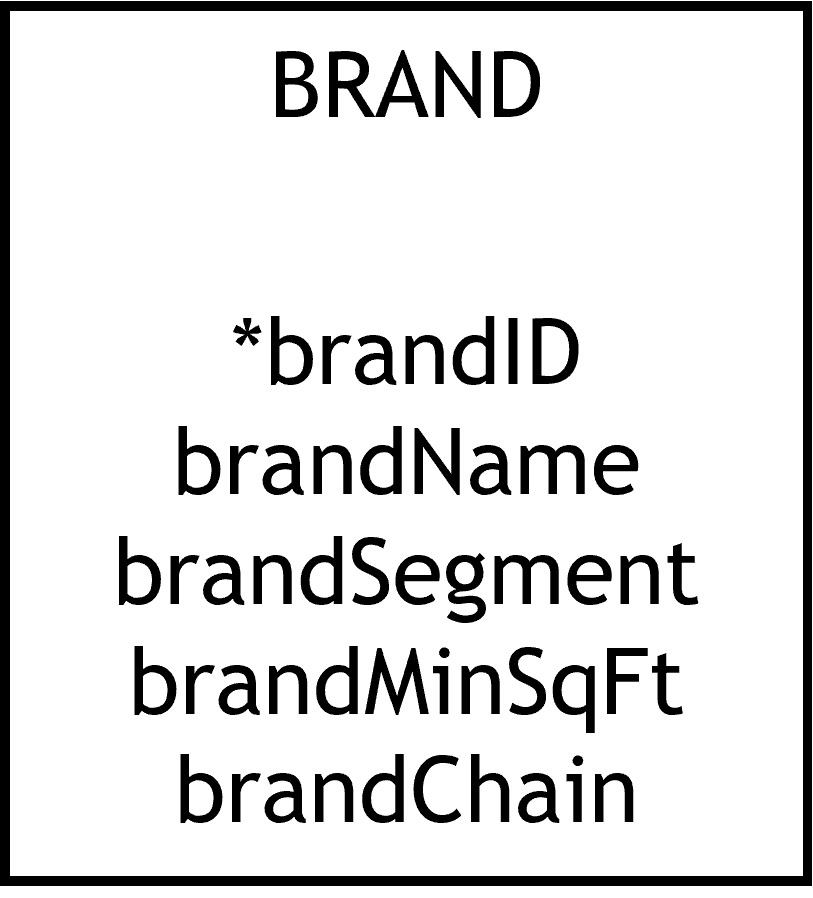

A leading asterisk denotes an identifier in our entity.

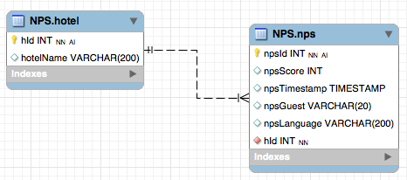

That’s it! You’ve created your first database model. It’s a simple one—just a single table. But soon, we’ll be designing much more complex databases, all built on these few basic steps.
Create a data model for recording details of the herd of cows that you manage
Now that you understand how the relational model works, it’s time to interact with the database! We’ll be using a database called Hotel Reviews. For now, it has just one table—the one we designed earlier—but as we progress, it will grow in complexity.
In SQL, querying the database is like having a conversation with the server. You ask for specific data, and the server responds with exactly what you need. Let’s start with some simple queries and gradually build up to more advanced techniques.
In SQL, the simplest way to retrieve data is by using SELECT * FROM tableName;. This command asks the database to return everything in the table. Think of it as saying, “Hey, server, show me (SELECT) all the data (*) in this table (FROM)!”
Of course, tableName is just a placeholder. We will have to replace it with the real name. In our case, the table is called brand.
Try it yourself with our brand table:
SELECT * FROM brand;Have you noticed the small detail at the end of line? Every query has to end with ;. It tells the server that your query ends here. Everything after this sign is a new code. This will be important when we run more than one query at a time.
Sometimes, you don’t need all the data—just specific columns.
You can request only what you need by listing column names:
SELECT brandName, brandChain FROM brand; This is like asking, “Tell me just the brand name and chain, please.”

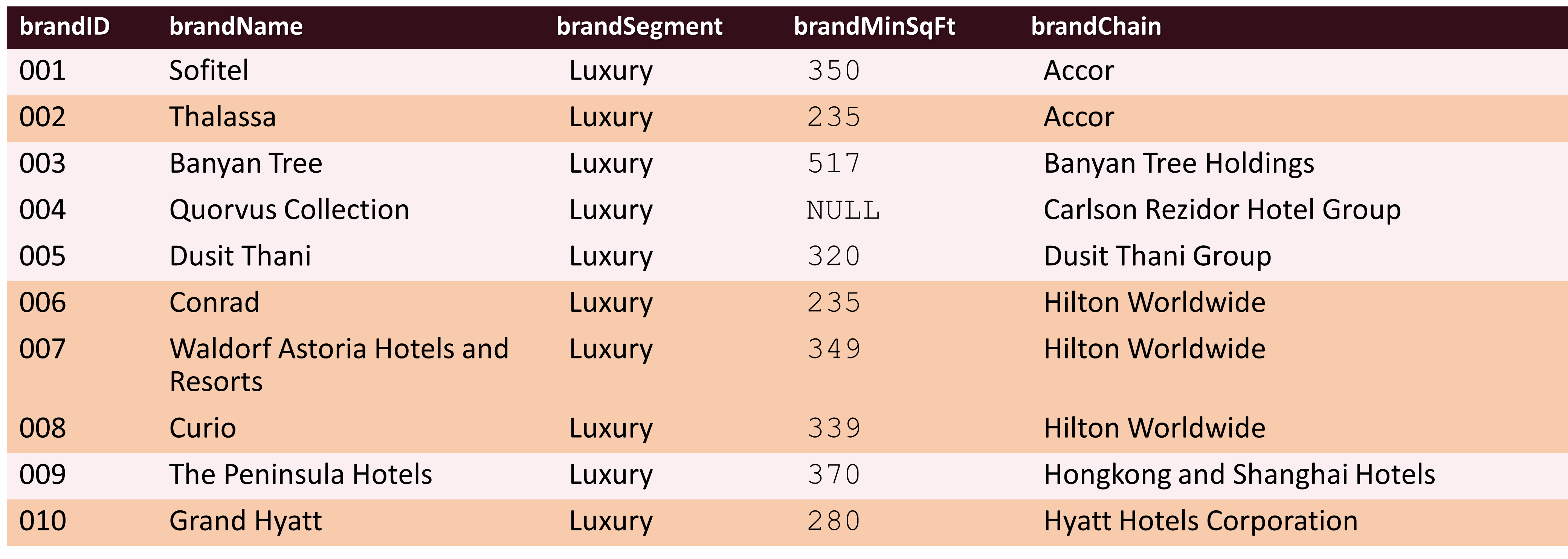

If you only want certain rows, use WHERE to filter results.
Try yourself and report all brands owned by Hilton Worldwide.
SELECT * FROM brand
WHERE brandChain = 'Hilton Worldwide';This is like telling the server, “Only show me brands owned by Hilton.”
You can choose any other lodging chain instead of ‘Hilton Worldwide’. For example, try with ‘Accor’ and see how the results change.
Hilton or Accor are values, not attributes. Unlike column names or table name, you always have to wrap text values with quotation marks ('...' or "...").
Following the same logic, you can exclude a value from the results. You have to replace = with != or <> (they both mean the same thing).
Try yourself and report all brands but Hilton Worldwide. Edit the query to try it with <> too.
SELECT * FROM brand
WHERE brandChain <> 'Hilton Worldwide';Combining both techniques, you can select specific columns and filter rows. List the brand name and segment of all brands owned by Hilton Worldwide:
SELECT brandName, brandSegment FROM brand
WHERE brandChain = 'Hilton Worldwide';Now you’re asking, “Show me just the names and segments of Hilton brands.”
A primary key uniquely identifies a row. If you query by it, you get at most one result:
SELECT * FROM brand
WHERE brandID = 10;This is like saying, “Give me all details about the brand with ID 10.”
Important Notice that numerical values do not have to be wrapped with quotation marks.
Without a primary key, multiple rows can be returned:
SELECT * FROM brand
WHERE brandChain = 'Accor';IN OperatorIf you want to filter by multiple values, IN operator will come handy:
SELECT * FROM brand
WHERE brandSegment IN ('Luxury', 'Economy');This is the equivalent of saying, “Give me brands that are either Luxury or Economy.”
You could get the same results by using WHERE with OR:
SELECT * FROM brand
WHERE brandSegment = 'Luxury'
OR brandSegment = 'Economy';Do you see how much more efficient it is with IN?
NOT IN OperatorTo exclude more than one value, use NOT IN:
SELECT * FROM brand
WHERE brandName NOT IN ('Sofitel', 'Thalassa', 'Curio', 'Conrad');This means, “Show me everything except these brands.”
The order of selected columns in your query defines how results appear. This just structures the results the way you prefer.
Compare these two queries
SELECT brandName, brandSegment FROM brand WHERE brandChain = 'Accor';SELECT brandSegment, brandName FROM brand WHERE brandChain = 'Accor';If you need to sort the results, you can use ORDER BY.

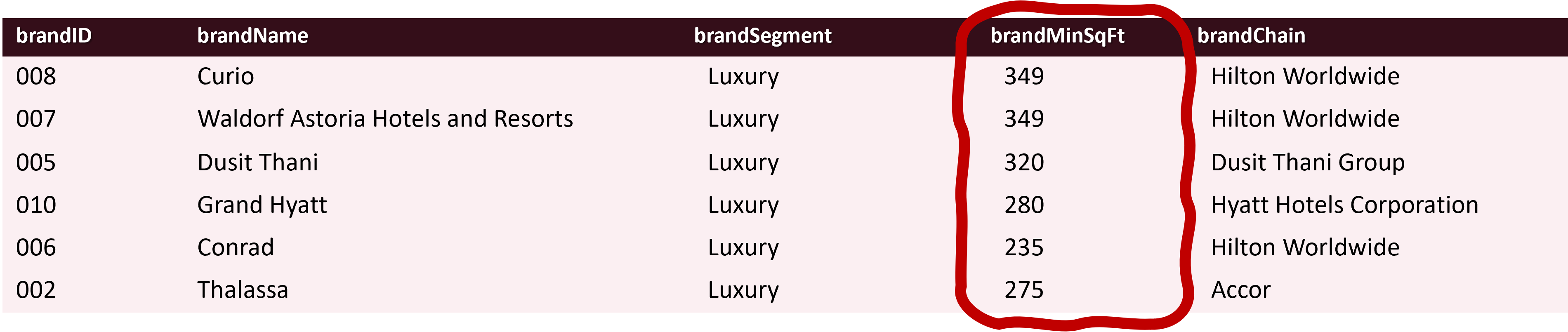

List all brands with rooms smaller than 350 square feet with largest first:
SELECT * FROM brand WHERE brandMinSqFt < 350 ORDER BY brandMinSqFt DESC;This means, “Show me brands with rooms under 350 sqft, biggest first, and if sizes match, sort alphabetically.”
DESC means descending order (biggest first). If you need ascending order (smallest first), you can replace it with ASC or simply remove it (ascending order is default in SQL).
Have you noticed that there are many brands with the same value? We can order results by two columns. If the results in the first column are identical, the second column will be used to sort them. Let’s add brandName to our ORDER BY clause.
List all brands with rooms smaller than 350 square feet with largest first. Where areas are identical, list brands in alphabetical order.
SELECT * FROM brand WHERE brandMinSqFt < 350 ORDER BY brandMinSqFt DESC, brandName;Notice that our results are ordered by brandMinSqFt in descending order (DESC), and alphabetically by brandName (you can add ASC after brandName to get the same results).
Last one more thing. Notice that we use < in this query. WHERE condition can take all the comparison operators: =, !=, <, >, <=, and >=.
SQL allows calculations directly in queries. Let’s say we want to convert square feet to square meters in the results (m² = f² / 10.764).
SELECT brandName, brandMinSqFt / 10.764 FROM brand;The column name for our calculated field in the results above doesn’t look nice. To make results clearer, use AS to rename calculated fields (or any other column in your query).
Get minimum room area in square meters for each brand. Rename the output
SELECT brandName, brandMinSqFt / 10.764 AS brandSqMt FROM brand;Now the result column will be labeled brandSqMt instead of an anonymous calculation. This new name is called alias.
The DISTINCT keyword in SQL is used to eliminate duplicate rows from query results, ensuring that only unique values are displayed. This is particularly useful when reporting different possible values for a specific column, such as brand segments.
Run this query first. Then, modify it to retrieve a list of all unique brand segments without repetition.
SELECT DISTINCT brandSegment FROM brand;That’s it for now! 🎉
Even if it seems like just a little, learning this is already a great achievement!
Remember, SQL is like having a conversation in English with the database:
SELECT * FROM table;SELECT column FROM table;WHERE = conditionORDER BY columnWith these basics, you’re already on your way to mastering SQL!
